Voltage: AC110-240V / 50-60Hz
 Total power: 400W
Light Source: Osram 200W
Color temperature: 8500°K
Ballast: Inductor Ballast
Channel: 16CH
Control mode: DMX512 / master / slave /
automatic / sound
Color: 14 colors + white
Pattern: 17 patterns + white
Strobe: 0-10 / second, adjustable speed
Prism: 8 + 16 prism optional
Focusing: Electronic Focus
Optics: Three lenticular lens groups zoom 0°-3.9°;
Electronic Focus: 20 meters, 50000 LUX
Atomization effect: selectable
Level: 540° (16-bit precision scan)
Vertical: 270° (16-bit precision scan)
Heat dissipation system: forced ventilation with axial fan.
IP rating: IP20
Carton size: 46 * 42 * 55cm
Gross weight: 19KG
Feature:
LCD screen, English and Chinese operation
Single color wheel. 14 colors + white, color can running automatically; Single gobo wheel, 17 fixed gobos +white, with gobos shaking function 8-facet rotated prism. Frost lens which make the effects like as wash light effects.
strobe speed can be adjustable from slow to fast
Automatically iris make the gobo clearly from near to far.
Pan: 540o, tilt: 270o With optical couple positioning and automatically error recovery.

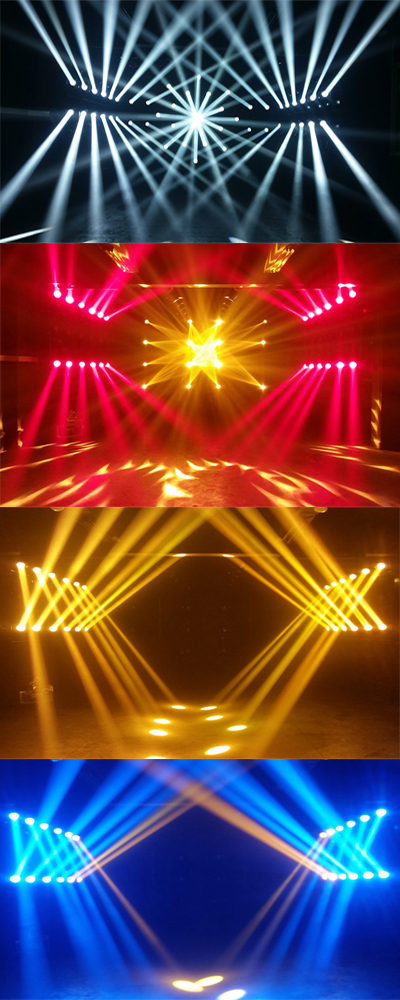

Effect:
Perfect parallel, laser-like beam, sharply defined and free of any halo
Color: 14 colors+ white, rainbow effect with bi-directional rotation
Rotating gobo: 17 gobos + white, round, arbitrary
Prism: 8+16 prism, positive and negative direction of rotation
Strobe: Double strobe,13 times /sec, random strobe and pulse strobe
|
